BF80E

LOCALLY MANUFACTURED

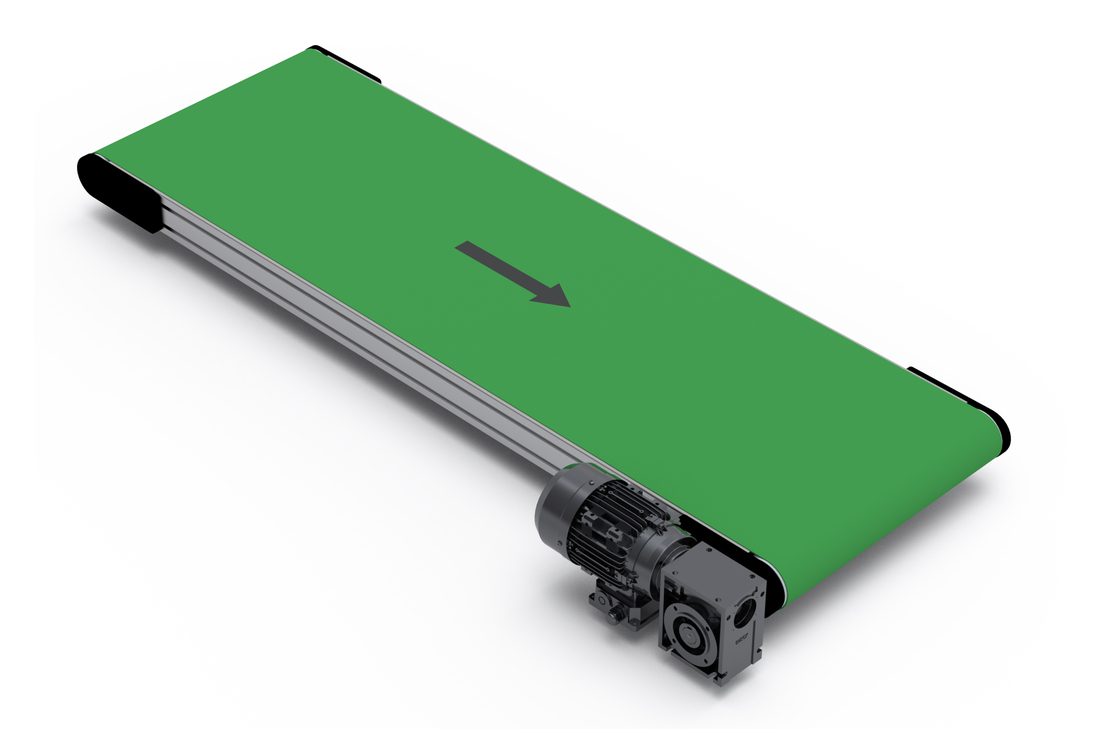

Belt conveyor with end drive. The product has a wide range of standard belts.

Recommended max. load 150kg. The recommended max load is evenly spread over the entire conveyor and is in relation to nominal width and length.

Dimension in mm.

For dimensions outside our standard range, please contact Rollco.

Use our CAD configurator to design your Belt conveyor according to your preferences and get a visual view, download data sheet and CAD files.

Declaration of incorporation of partly completed machinery according to Directive 2006/42/EC Annex II 1B.

Product Information

Length (mm): Up to 6000

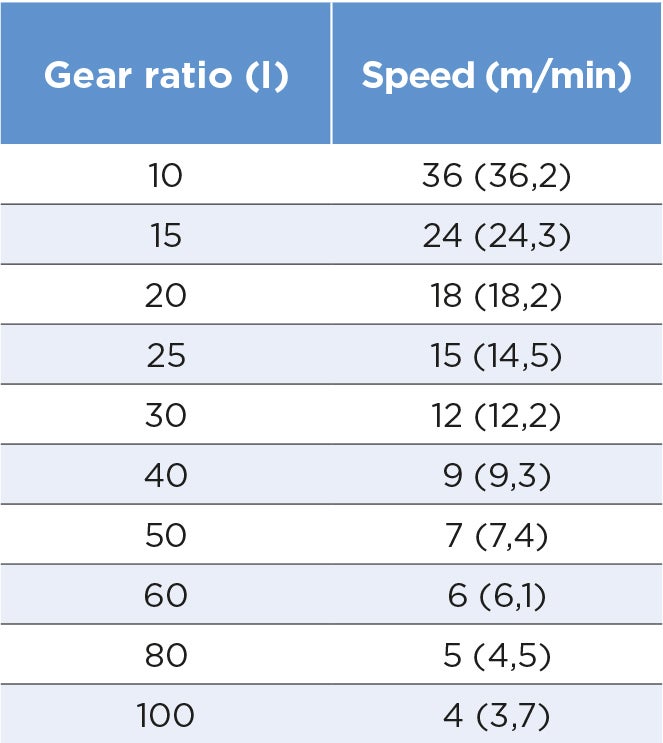

Gear ratio (I): 10 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 80 / 100

Speed (m/min): 36 (36.2) / 24 (24.3) / 18 (18.2) / 15 (14.5) / 12 (12.2) / 9 (9.3) / 7 (7.4) / 6 (6.1) / 5 (4.5) / 4 (3.7)

Drive side: Right/left

Motor Position: Horizontal/vertical — 1-4

Belt_Conveyors_Order_Codes.pdf

Manual_Belt_Conveyor_BF_Series_English.pdf

Download PDF (all data) Generating PDF

+ Add to PDF catalogue

Configure CAD / Request quote Download CAD

Designation	Lead Time *	Width (mm)
BF80E - 500	2	500
BF80E - 600	2	600
BF80E - 700	2	700
BF80E - 800	2	800
BF80E - 900	2	900
BF80E - 1000	2	1000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Belts

Standard belts for a wide range of applications
Tracking Guides

For applications where transversal forces occur
LOCALLY MANUFACTURED

Conveyor Stands

Guaranteed 100% compatible with the conveyor
LOCALLY MANUFACTURED

Conveyor Guides

For diverting, accumulating or guiding goods
LOCALLY MANUFACTURED

Support Kits

Used to take up belt slack

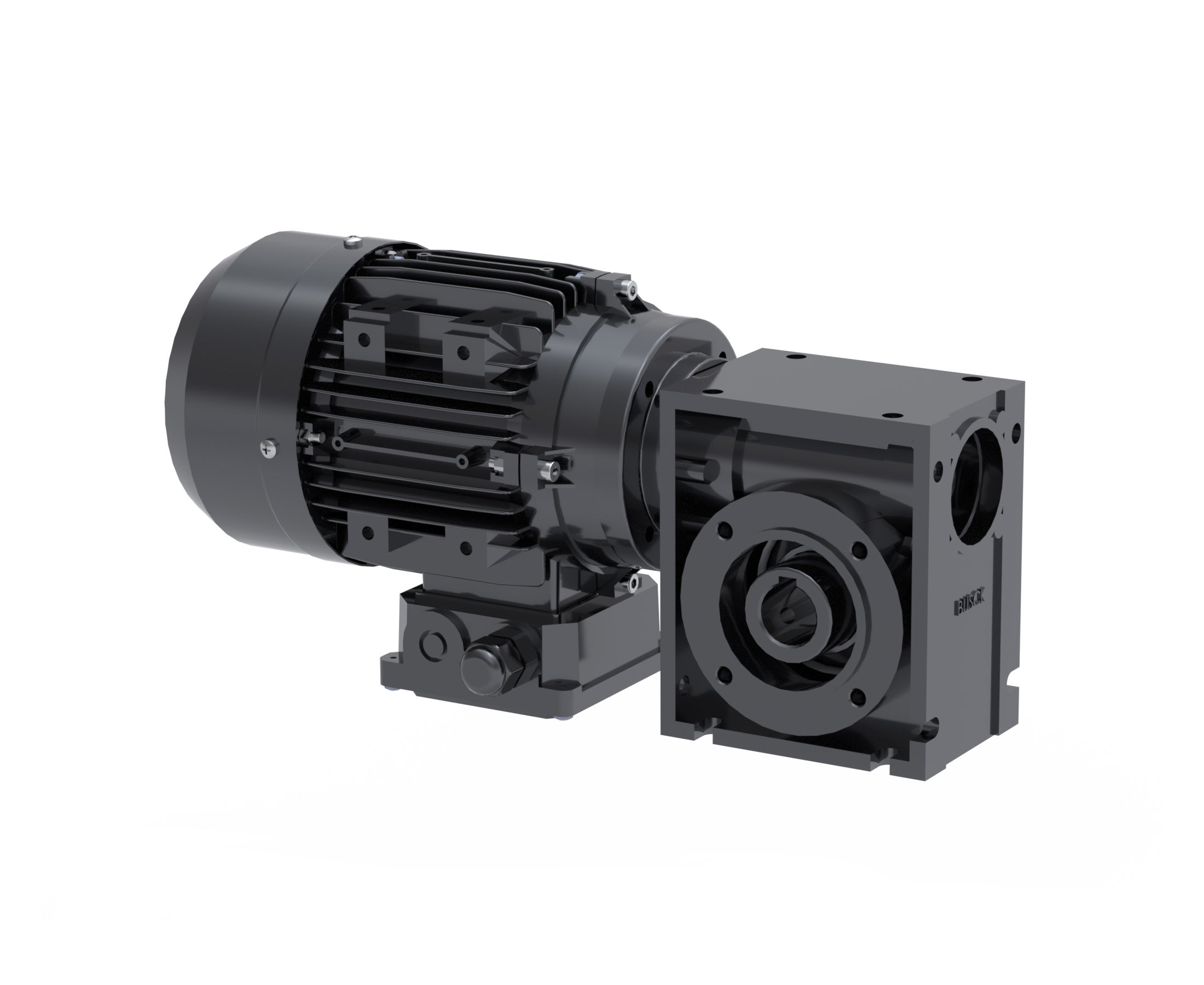

Motors for BF80
