RSCR
Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw

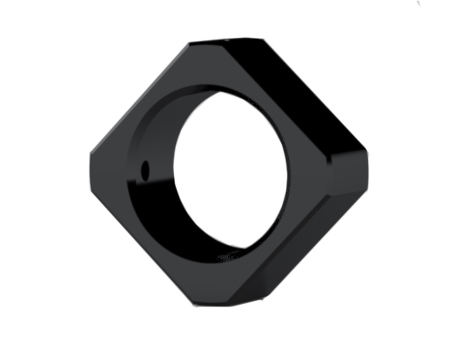

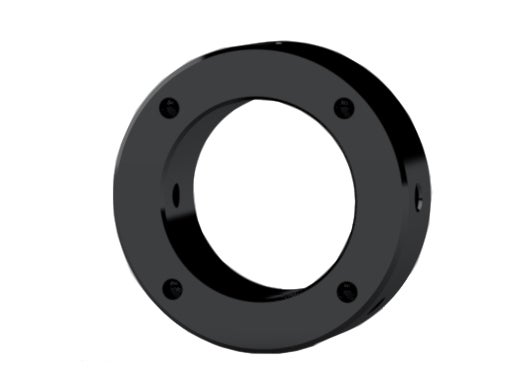

RN/RN..W
Spanner tools for radial holes "R" available from Rollco.
All dimensions in mm.
* The Maximal tightening torque of the nut should not be exceeded. It is not required, neither recommended to tighten the nut to its limits. What is mandatory is to always tighten the set screws to prescribed values, after the nut have been tighten to a distinct stop.
Read more
All dimensions in mm.
* The Maximal tightening torque of the nut should not be exceeded. It is not required, neither recommended to tighten the nut to its limits. What is mandatory is to always tighten the set screws to prescribed values, after the nut have been tighten to a distinct stop.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Max. Tightening Torque Nut (Nm)* | Tightening Torque Set Screws (Nm) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 2 | 0.6 | ||||
|
|
|
1 | 3 | 0.6 | ||||
|
|
|
1 | 3 | 0.6 | ||||
|
|
|
1 | 7 | 1.5 | ||||
|
|
|
2 | 8 | 1.5 | ||||
|
|
|
1 | 10 | 1.5 | ||||
|
|
|
1 | 17 | 1.5 | ||||
|
|
|
1 | 21 | 5.0 | ||||
|
|
|
1 | 32 | 5.0 | ||||
|
|
|
1 | 72 | 5.0 | ||||
|
|
|
2 | 87 | 5.0 | ||||
|
|
|
2 | 105 | 5.0 | ||||
|
|
|
2 | 160 | 5.0 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | E | M | R | T | Y | d7 | X | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
13.5 | 5 | 2.7 | M3 | - | 12 | - | M6x0.75 | - | ||||
|
|
|
16.4 | 6.5 | 4 | M3 | - | 14 | - | M8x1 | - | ||||
|
|
|
19 | 8 | 5.5 | M3 | - | 16 | - | M10x1 | - | ||||
|
|
|
22.8 | 8 | 5.5 | M4 | - | 19 | - | M12x1 | - | ||||
|
|
|
25.8 | 8 | 4.75 | M4 | - | 22 | - | M15x1 | - | ||||
|
|
|
29 | 13 | 9 | M4 | - | 24 | - | M17x1 | - | ||||
|
|
|
35 | 11 | 7 | M4 | - | 30 | - | M20x1 | - | ||||
|
|
|
43 | 15 | 10 | M6 | - | 35 | - | M25x1.5 | - | ||||
|
|
|
48 | 20 | 14 | M6 | - | 40 | - | M30x1.5 | - | ||||
|
|
|
62 | 25 | 18 | M6 | - | 50 | - | M40x1.5 | - | ||||
|
|
|
45 | 20 | 11 | M6 | 5 | - | 4.3 | M25x1.5 | 35 | ||||
|
|
|
50 | 20 | 11 | M6 | 5 | - | 4.3 | M30x1.5 | 40 | ||||
|
|
|
60 | 22 | 12 | M6 | 5 | - | 4.3 | M40x1.5 | 50 |
-
-
