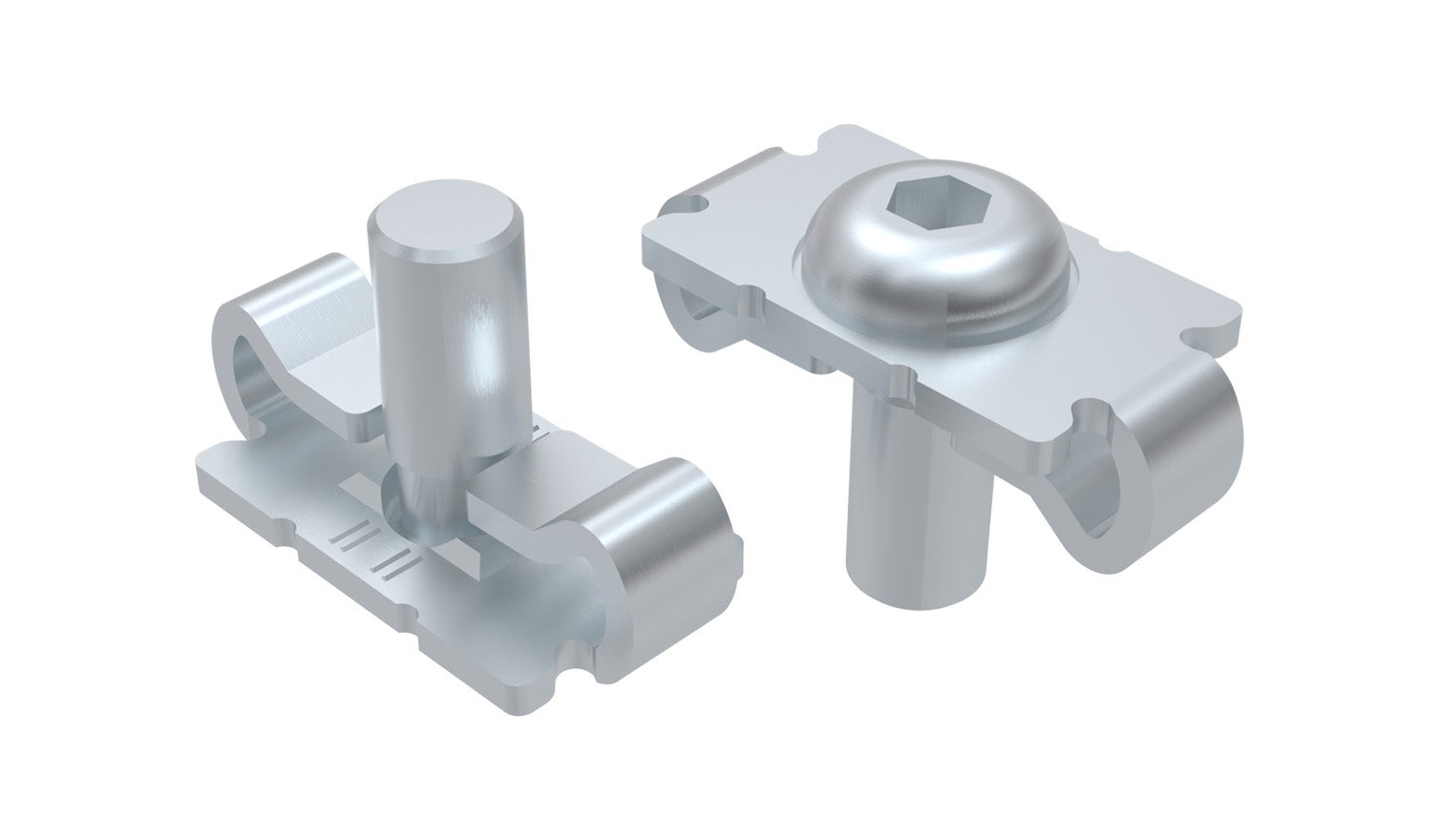

Standard Fastening Set
Cost-effective and simple connection of profiles

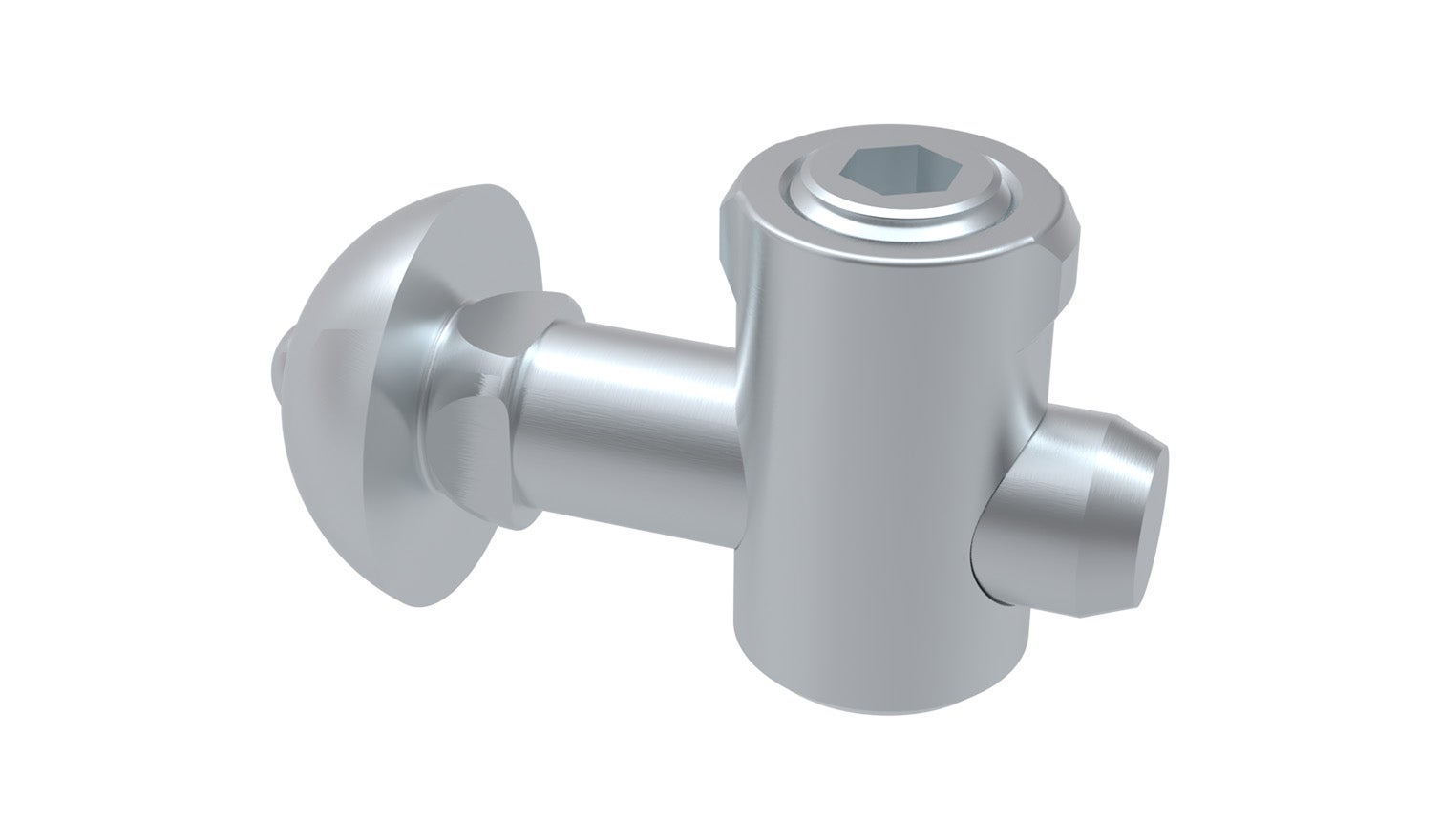

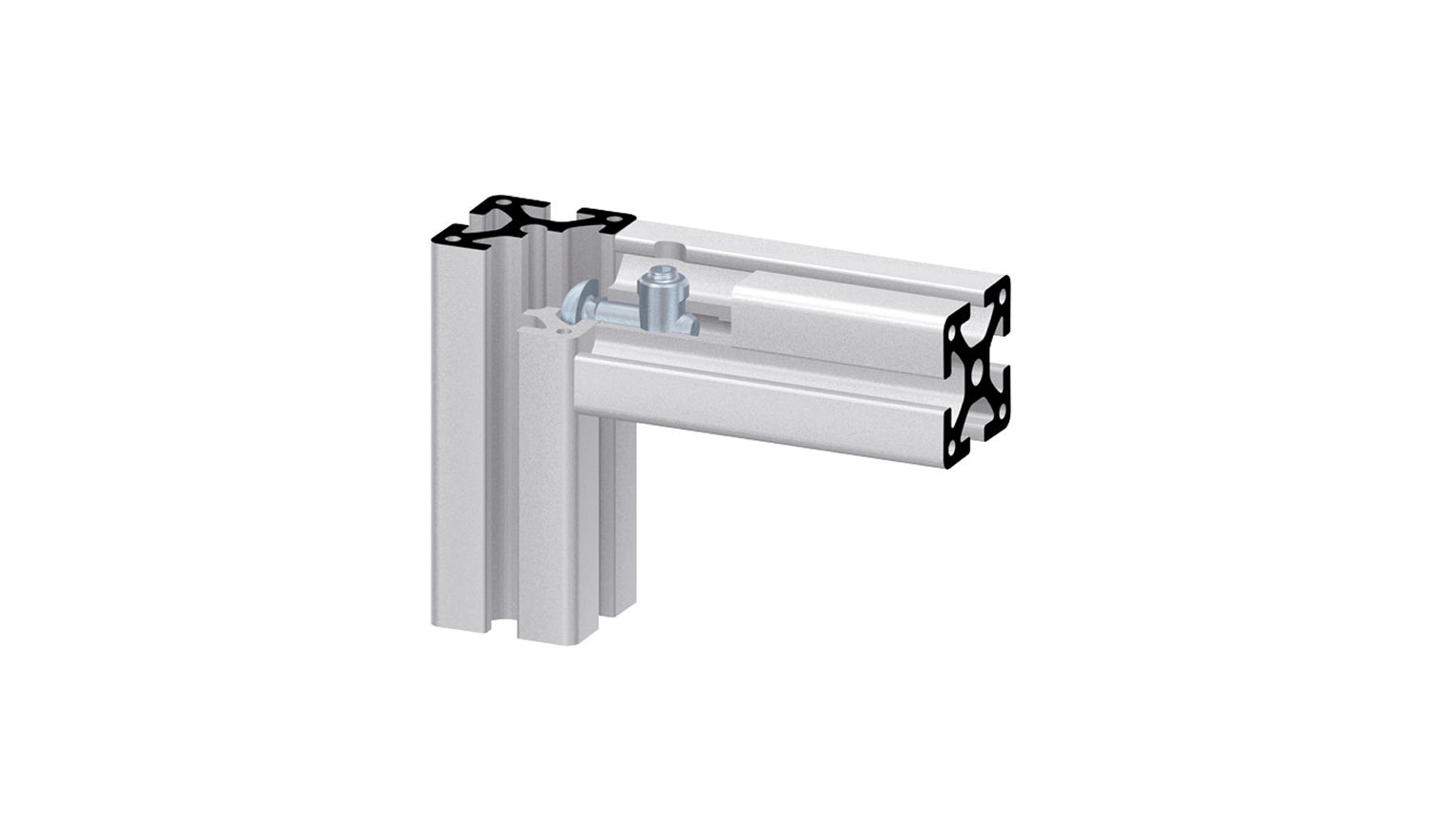

Central Fastener 40 S / SV
Application:
All-purpose universal fastener. The slide-in anchor is held in position in the profile slot by a spring-loaded ball in the opposing profile t-slot.
The SV fasteners have an anti-twist feature.
Assembly:

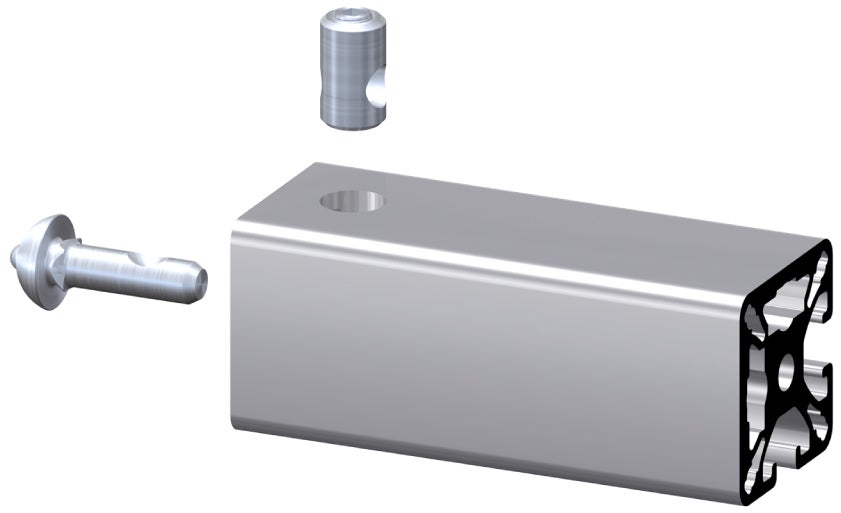

Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep. Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Read more
All-purpose universal fastener. The slide-in anchor is held in position in the profile slot by a spring-loaded ball in the opposing profile t-slot.
The SV fasteners have an anti-twist feature.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep. Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Product Information
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Material | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Central fastener 40 SV | 40 - Slot 8 | Steel, zinc-plated | 29 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-

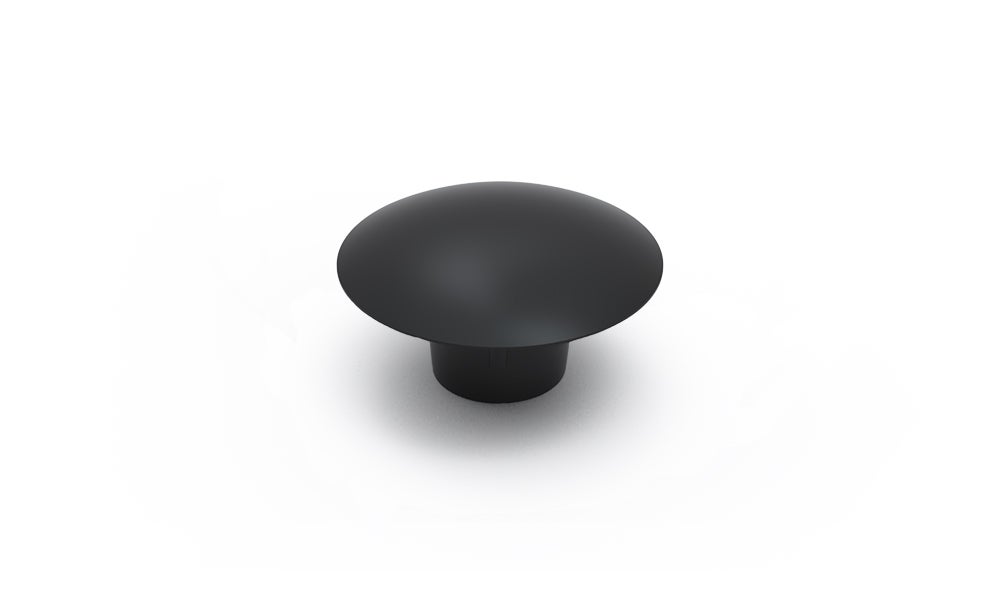

Profile Cap ø7 for Standard Fastener
Used to close drill holes in closed profiles -

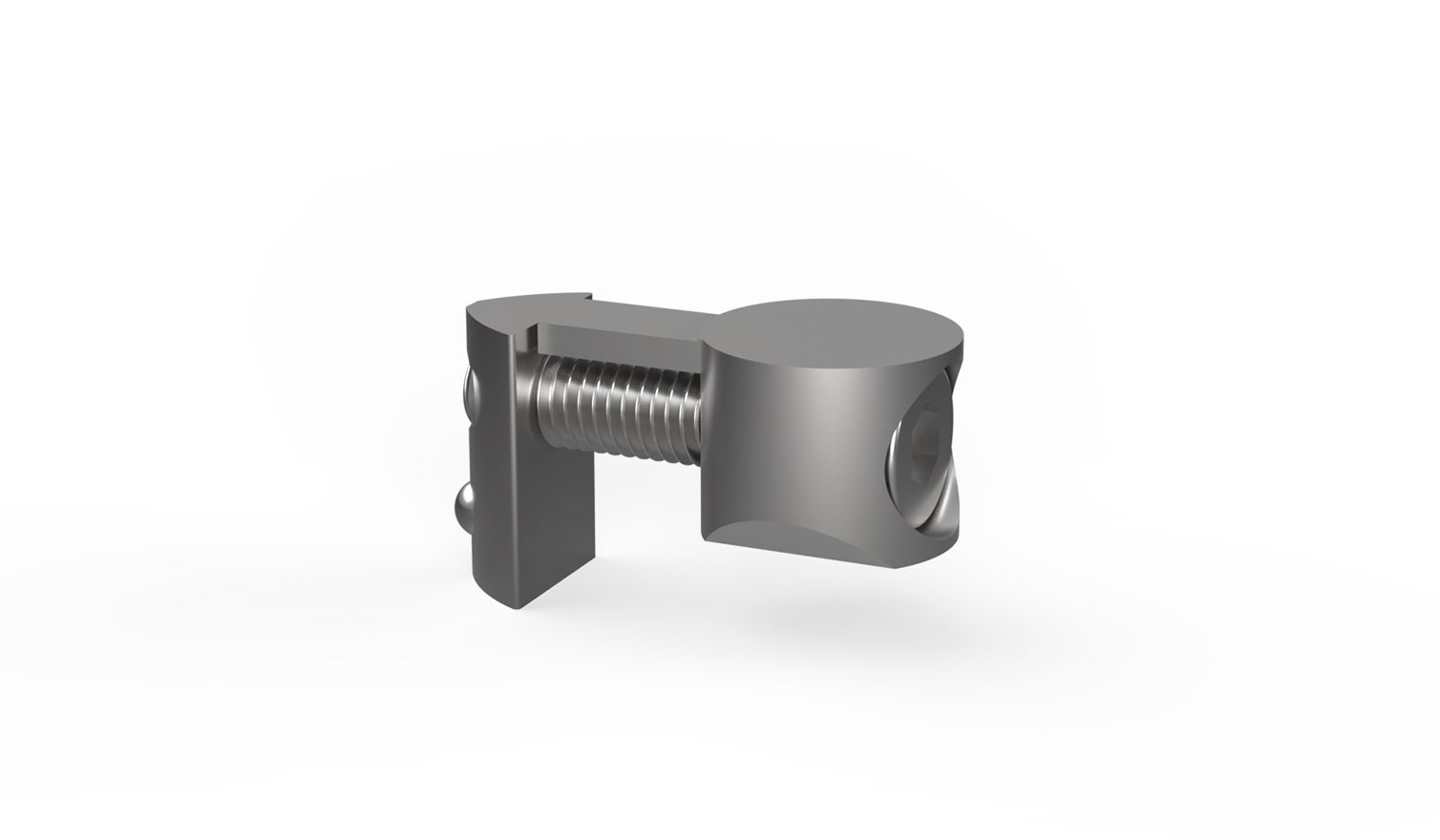

Universal Fastener
Fastener for connection of profiles -

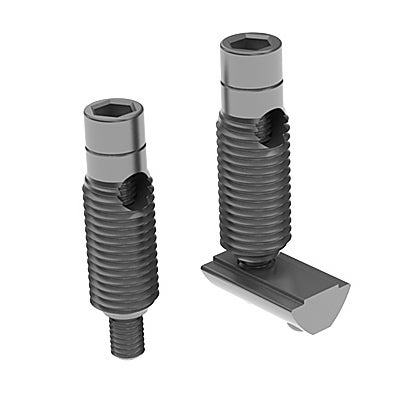

Automatic Fastening Set 40
Quick and easy to use without modifying profiles -

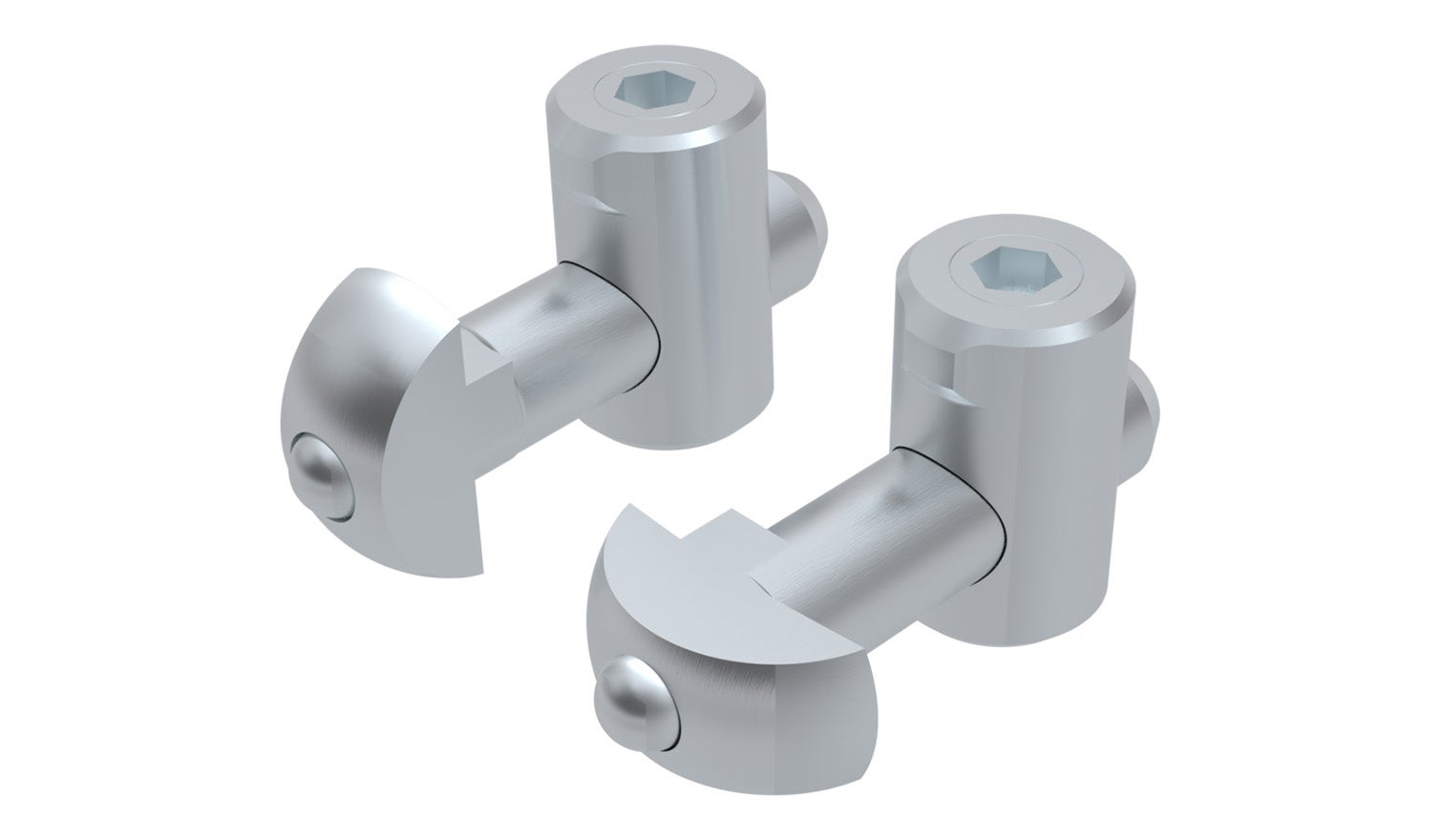

Central Fastener 40 EL / EQ
All-purpose universal fastener -

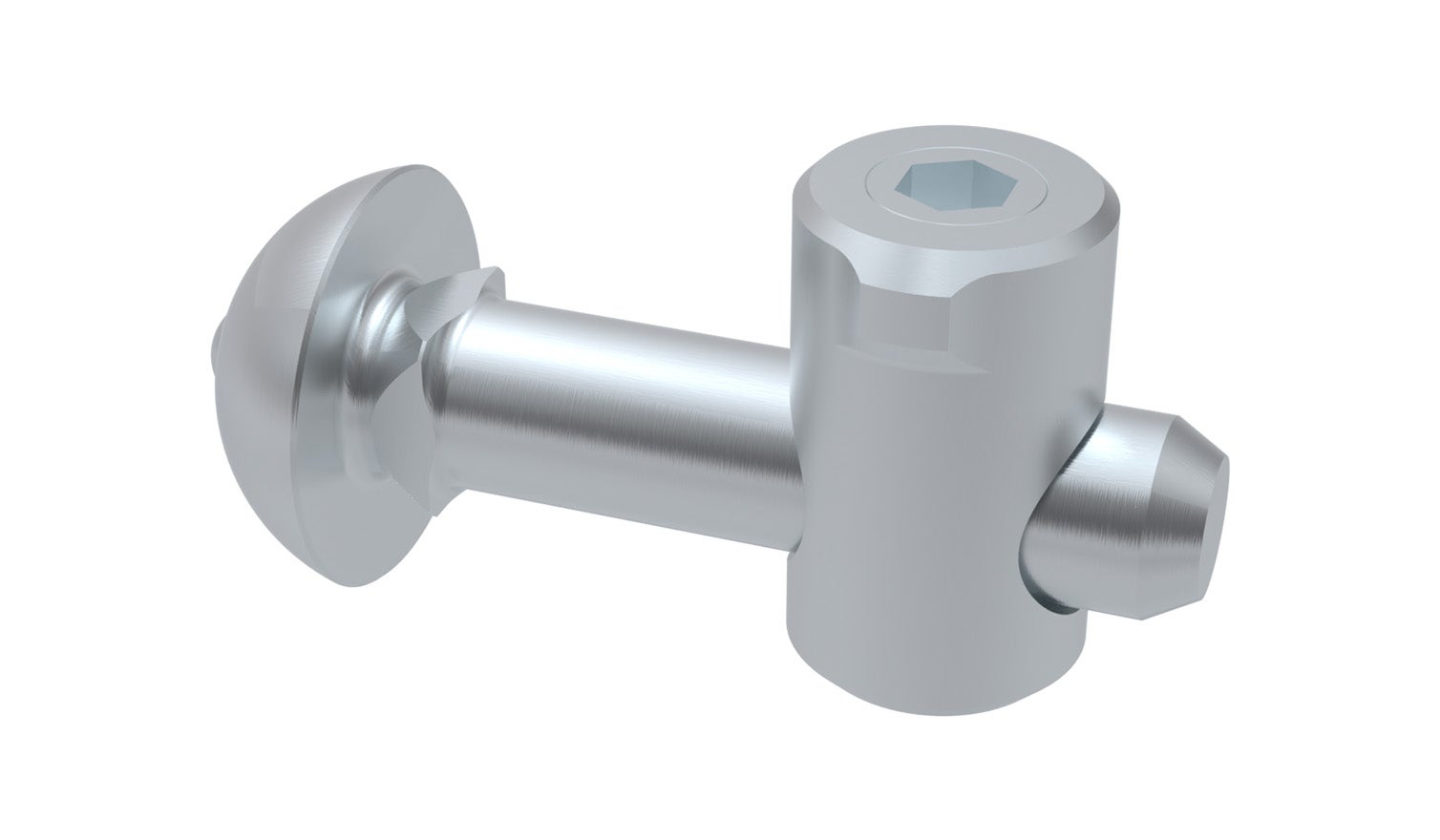

Central Fastener 40 SVL
Fastener for parallel and transverse connections -

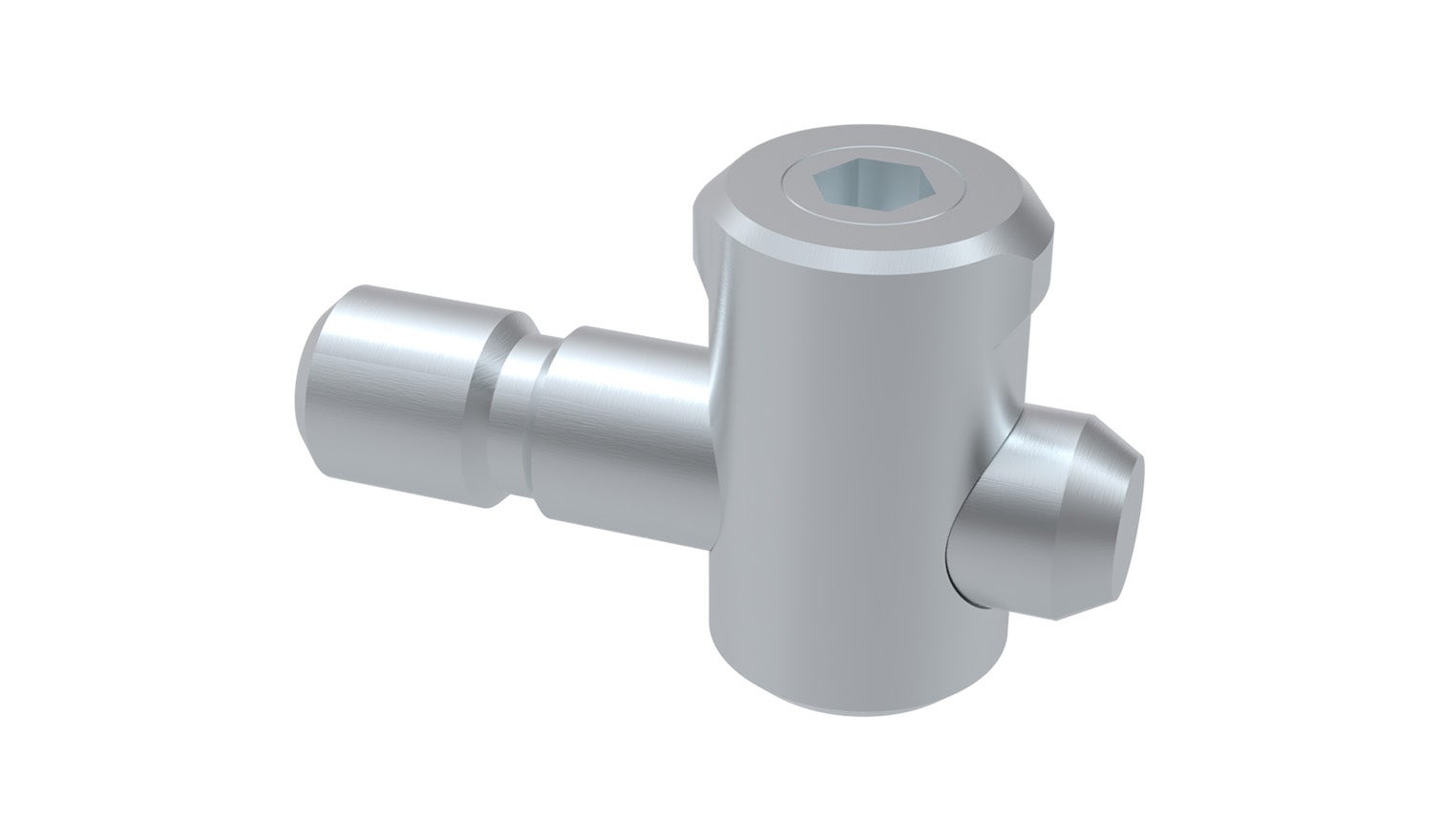

Central Fastener 40 G
Butt fastener -

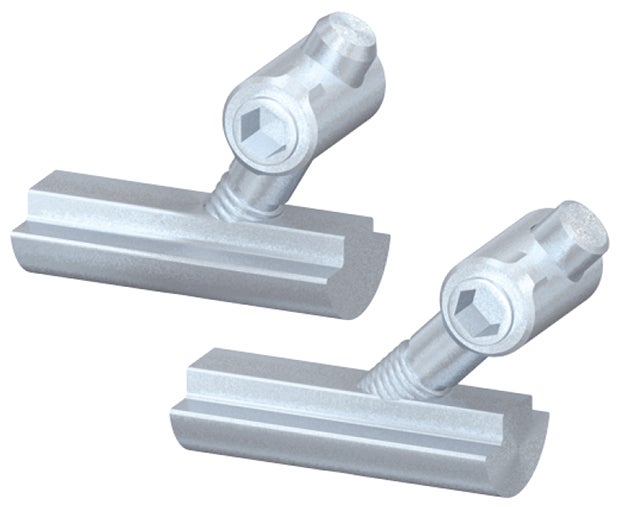

Central Fastener G 30 SS / G 45 SS
Fastener - special angled available on request -

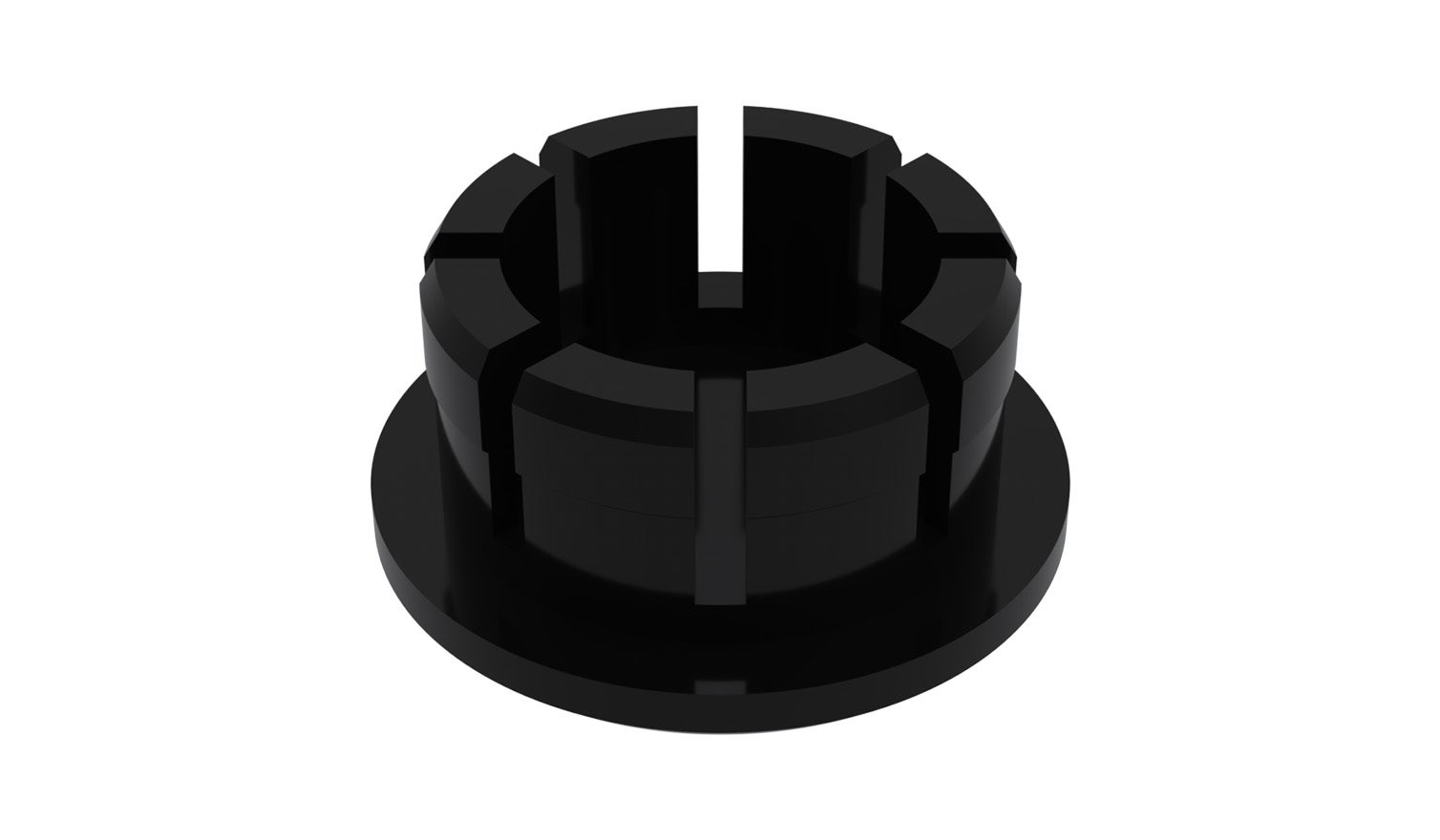

Profile Cap for SV drillings
