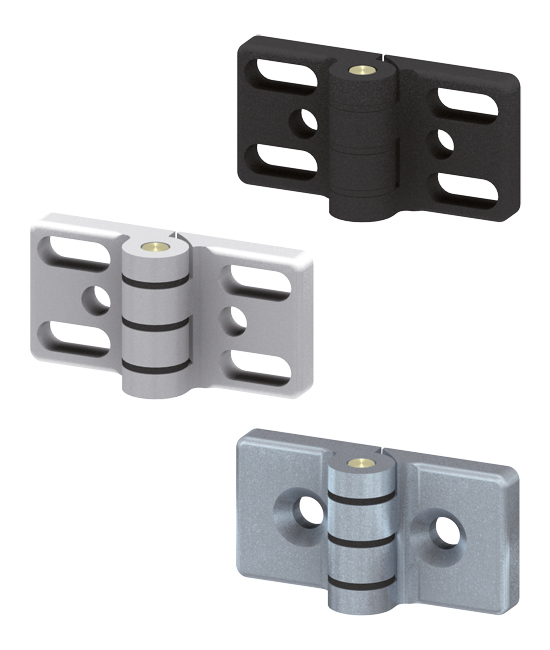

Hinge 40, steel
Medium load hinge for machines etc.
Hinges 40
Application:

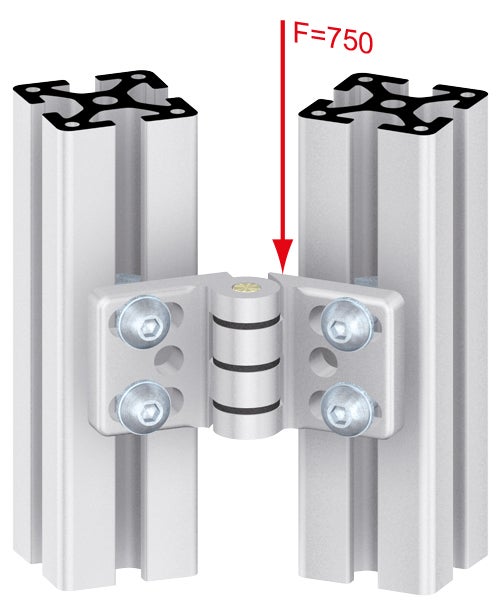

A medium to heavy load hinge for machines and protective guardings.
Supply:
2x anti-twist set screw
SZ0788V includes:
2x special t-nut 2x M 8 / spring-loaded ball
4x button head screw M 8 x 18
4x washer Ø 8 mm
Read more
A medium to heavy load hinge for machines and protective guardings.
Supply:
2x anti-twist set screw
SZ0788V includes:
2x special t-nut 2x M 8 / spring-loaded ball
4x button head screw M 8 x 18
4x washer Ø 8 mm
Product Information
Material: Aluminium, natural anodized, black anodized or GDZn (zinc die casting), black
System: 40 - Slot 8
Type: Hinges
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|

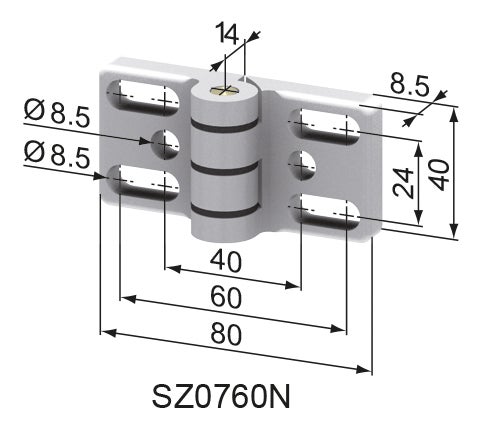

2 | Hinge 40, natural | 40 - Slot 8 | 83 | ||||
|
|
|

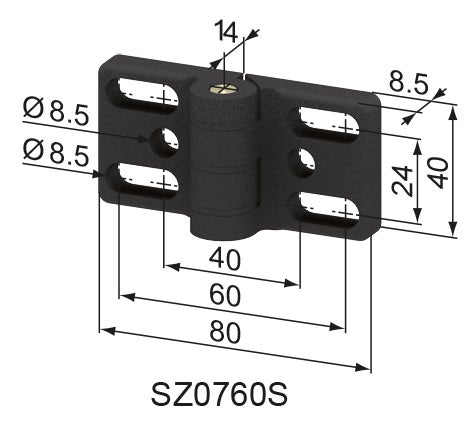

2 | Hinge 40, black | 40 - Slot 8 | 84 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-

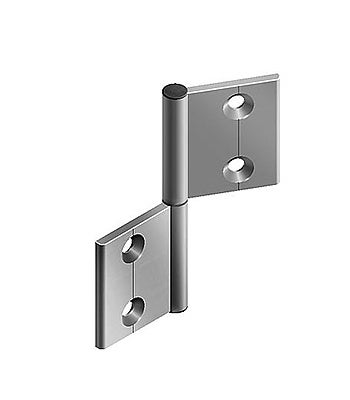

Inside Hinge Element
