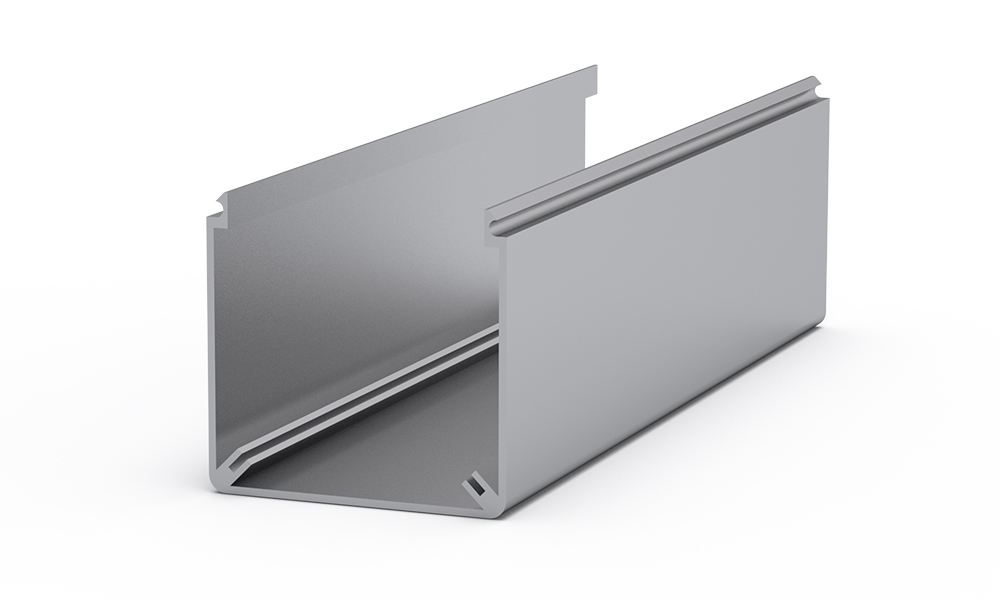

Wiring Duct 60 x 60

Product Information

System: 40 - Slot 8; 30 - Slot 8
Length (mm): 6000
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Ix (cm⁴) ly (cm⁴) Wx (cm³) Wy (cm³) A (cm²) Mass (kg/m)
Request quote 2 11.28 20.73 2.89 6.91 3.18 0.86

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
