Linear Unit QME- standard version

LOCALLY MANUFACTURED

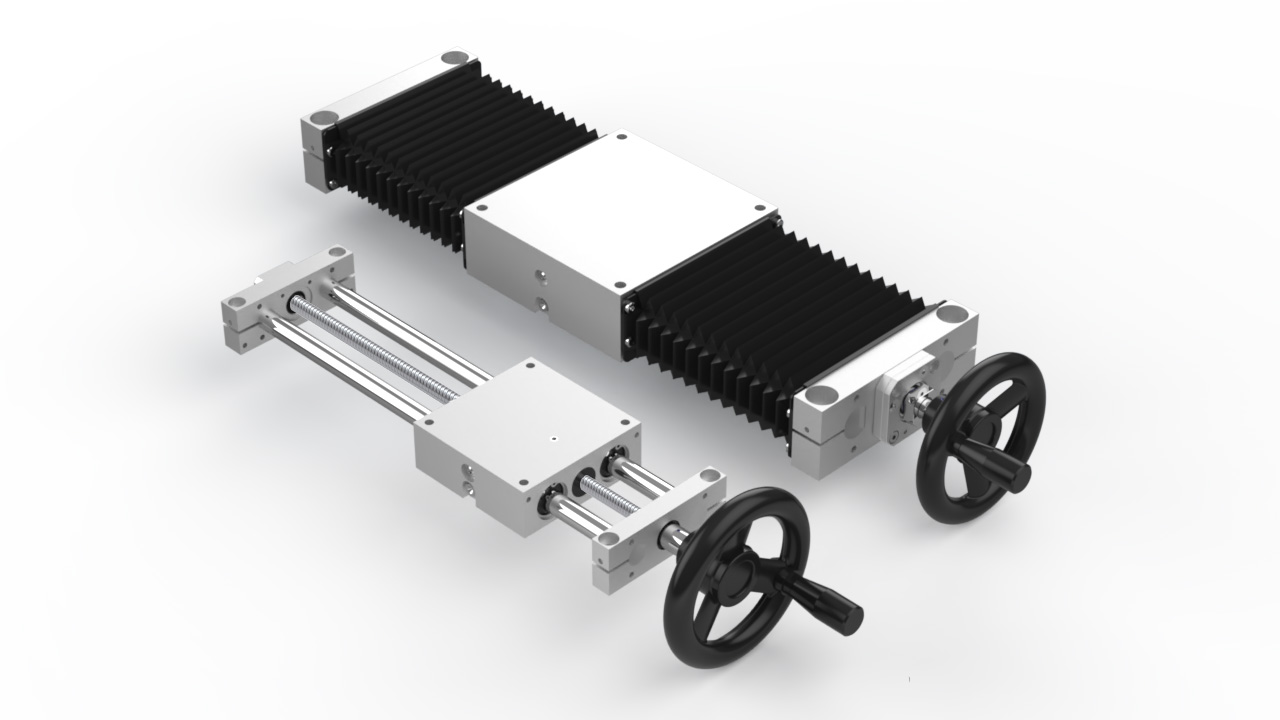

By using Linear Unit QME from Rollco you save both time and money. The units are designed to fulfil the need of an easy to mount unit for medium precision requirements. The units are ready to mount linear tables guided with linear ball bearings on hardened shafts and driven by ball- or lead-screw. There is a wide variety of executions available for quick delivery from our workshop.

Selectable standard options are:
• Bellows
• Hand wheel
• Screw locking
• Mechanical position counter
• Left+Right drive units
• Magnetic end position switches

For higher level of corrosion resistance, low/high temperature versions, other screw-leads or
types, customized machining of the drive- and mounting-interfaces, contact Rollco.

Characteristics
• Linear ball bearings used for lowest friction and minimal and persistent play.
• Low backlash ball screw, optional with reduced backlash or backlash eliminated by light preload.
• Customized mounting flange for motor and/or customized end-machining of the screw shaft available.
• Corrosion resistant version as option.

Max Ltot: QME12: 1000 mm, QME20: 1500 mm, QME30: 2000 mm
Dimensions of Drive ends refer to Standard version drawing.
All dimensions in mm. Drive ends
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * Screw Type Static Load Capacity Fz (N) Dynamic Load Capacity Fz (N) Static Load Capacity Fy (Nm) Dynamic Load Capacity Fy (Nm) Static Load Capacity Mx (Nm) Dynamic Load Capacity Mx (Nm) Static Load Capacity My (Nm) Dynamic Load Capacity My (Nm) Static Load Capacity Mz (Nm) Dynamic Load Capacity Mz (Nm) Dynamic Capacity Ca (N) Permissible Fx (N)
Get quote 2 SR082,5 3160 2080 3160 2080 71 47 74 47 74 49 2030 1400
Get quote 2 TR1203 3160 2080 3160 2080 71 47 74 47 74 49 n/a 1400
Get quote 2 SR1605 5600 3520 5600 3520 202 127 216 127 216 136 7100 2500
Get quote 2 TR1604 5600 3520 5600 3520 202 127 216 127 216 136 n/a 2500
Get quote 2 SR/SL3205 / SR3210 / SR3220 11200 6400 11200 6400 728 416 678 416 678 387 9500 3200
Get quote 2 TR3006 11200 6400 11200 6400 728 416 678 416 678 387 n/a 3200

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote J L L1 L2 h H1 H2 W W1 W2 M Ltot d1 D1 d2 D2 h1 h2 h3 h4 H L3 L31 d8 B (P9 )x L33 x T Drive end W x
Get quote 73 85 12 14 15 5.5 8.5 85 73 45 M6 x 12 stroke+98 5.2 5.2 5.5 5.5 5.5 8.5 1.5 7.5 31.5 23 8 4 (h7) no keyway 53
Get quote 73 85 12 14 15 5.5 - 85 73 45 M6 x 12 stroke+98 - 5.2 - 5.5 - 8.5 1.5 7.5 - 23 8 4 (h7) no keyway 53
Get quote 115 130 20 20 24 8.5 13.5 130 108 72 M8 x 18 stroke+150 6.8 6.8 11 11 8.5 13.5 2 7.5 48 48 25 10 (h7) 3 x 21 x 1.8 61
Get quote 115 130 20 20 24 8.5 - 130 108 72 M8 x 18 stroke+150 - 6.8 - 11 - 13.5 2 7.5 - 48 25 10 (h7) 3 x 21 x 1.8 61
Get quote 184 200 22 22 36 8.5 14 200 178 130 M8 x 18 stroke+222 6.8 6.8 13 13 8.5 14 2 15 70 80 45 16 (h7) 5 x 36 x 3 68
Get quote 184 200 22 22 36 8.5 - 200 178 130 M8 x 18 stroke+222 - 6.8 - 13 - 14 2 15 - 80 45 16 (h7) 5 x 36 x 3 68
