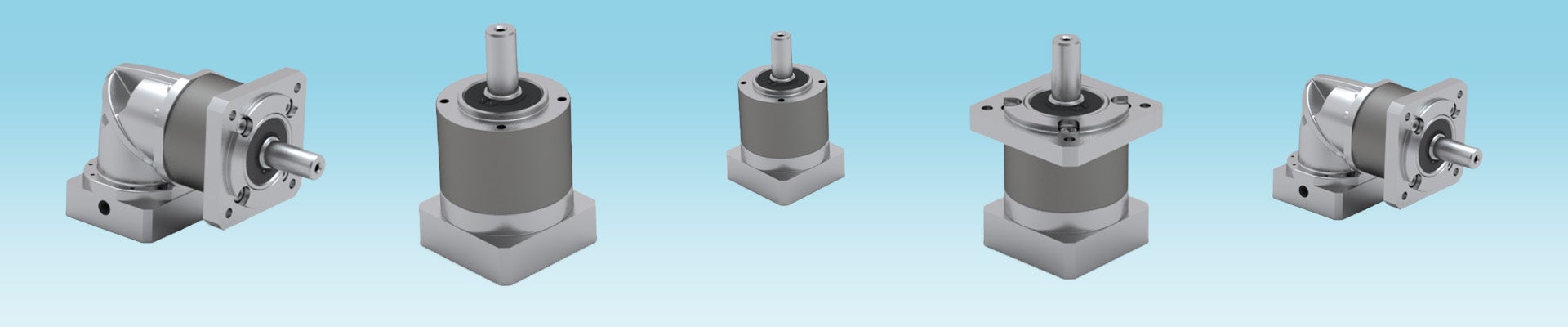

Rollco Planetary Gears

PLANETARY GEARBOXES

Planetary gears are used in mechanical and mechatronic drive systems with high requirements for high torque density and high precision. Our planetary and right-angle gears from WITTENSTEIN are suitable for most applications and performance levels. Complete your linear unit with a planetary gear and our adapter kit. Our CAD-configurator helps you to easily configure a complete unit to your needs.

MORE INFORMATION

  • CP planetary gearbox
    Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy- and performance-requirements. Compact B14 output interface.
  • COMBINE WITH LINEAR UNIT RHL

    CPS planetary gearbox
    Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy- and performance-requirements. Output interface cylindrical or with B5-flange.
  • COMBINE WITH LINEAR UNIT RHL

    CPSK bevel gearbox
    Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.

  • CPK bevel gearbox
    Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin.

  • NP planetary gearbox
    Ratio 3-100, Backlash: ≤ 8 -13 arcmin. For medium accuracy- and performance-requirements. Compact output interface.

  • NPL planetary gearbox
    Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy- and performance-requirements with higher axial and radial shaft loads.

  • NPS planetary gearbox
    Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy- and performance-requirements with higher axial and radial shaft loads.

  • NPK bevel gearbox
    Version of NP with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.

  • NPLK bevel gearbox
    Version of NPL with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.

  • NPSK bevel gearbox
    Version of NPS with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.
